PM-6790 Projector Ceiling Mount
PM-6790 measurementsPM-6790 base swivelsFits pitched ceilingsPM-6790 diagram

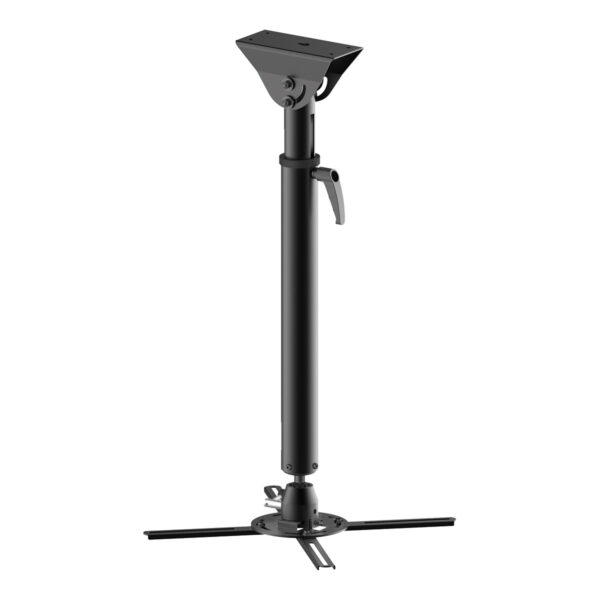

Universal Ceiling Projector Mount PM-6790 for Pitched Ceilings (Black)

Price: $119.99

Avability: In Stock

The PM-6790 is a universal ceiling mount for projectors up to 30kgs/66 lbs. Solid ball-joint structure offers 360 rotation and 20 tilting for multi-angle viewing. It offers flexible projector positioning with four adjustable support arms that can fit a wide range of mounting holes. You can easily use the easy-grip knob to adjust length from 67cm to 90cm to meet different needs. It features an adjustable height extension channel and a versatile ceiling plate that can mount to traditional or beveled ceilings.


  • Cable management system helps keep cables concealed and organized
  • Loading capacity up to 30kg for any projectors
  • Adjustable height for your different choices

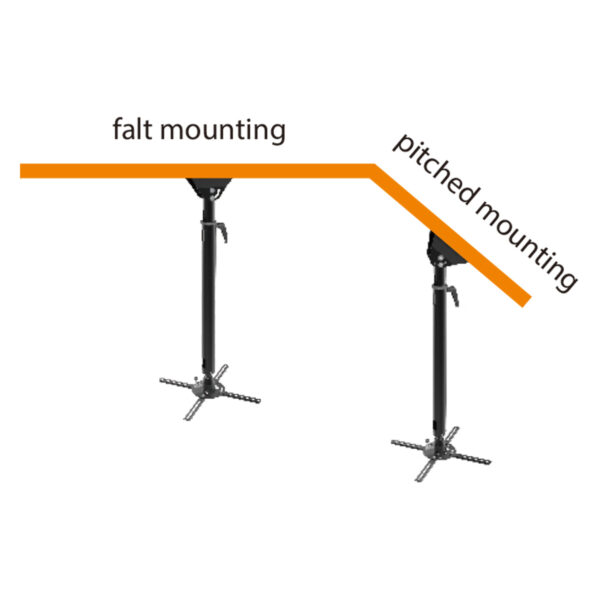

  • Angle adjustment fits pitched roof
  • Integrated ball joint allows 360° rotate and 20° tilt for multi-angle viewing


  • Installation: Ceiling (for Pitched Roof)
  • Weight Capacity: 30kg (66lbs)

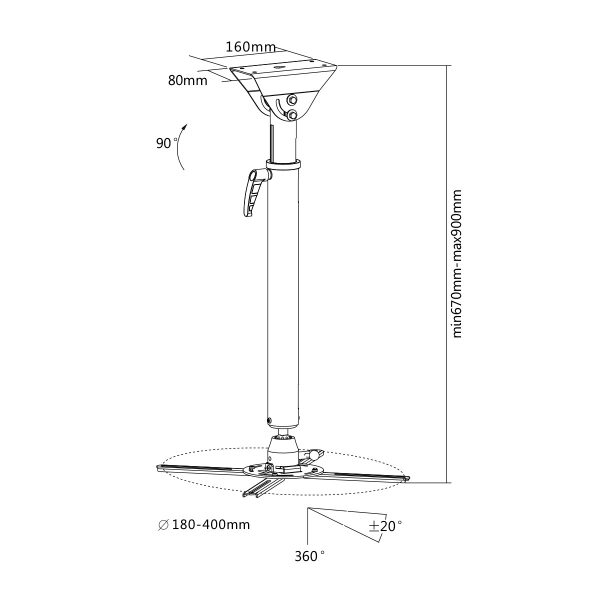

  • Mounting Range: 180mm-400mm (7.1″-15.7″)
  • Tilt: -20°~+20°
  • Swivel: -20°~+20°
  • Rotate: 360°
  • Profile: 670mm-900mm (26.4″-35.4″)
  • Adjustable Length: 67.0-90.0cm
  • Stud Installation: Yes
  • Cable Management
  • Self-Lock
  • Material: Aluminum, Steel
  • Colour: Black
  • Ceiling Mount Plate Dimensions (W x D): 16 x 8cm
  • Product Size: 35.4″ x 16.3″
  • Weight: 3.5kg
  • Warranty: Limited Lifetime
  • PM-6790 Universal Ceiling Projector Mount (Black)
  • Owner’s Manual
